Background: internal structure of Android

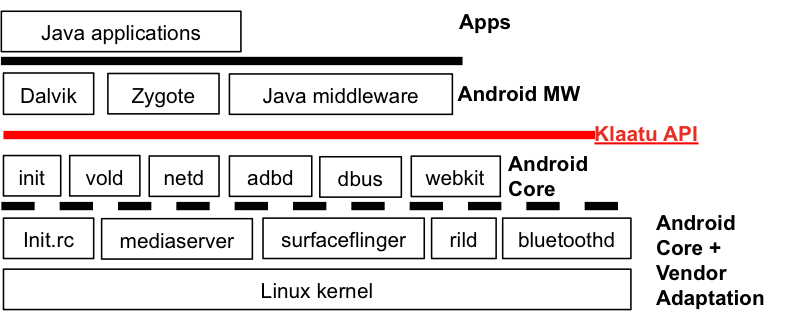

The Android software stack has been put together with quite a clean design:

• Vendor adaptation: linux kernel and in selected user space libraries and processes
• Android "core": a C/C++ set of libraries and applications for startup, communications, media, graphics processing
• Android "middleware": provide a rich set of services for Dalvik applications
• Zygote system process: includes both shared system services for applications as well as window manager functionality

Can we put a different application/user interface framework on the Android middleware?

By cutting the Android s/w stack below the Dalvik layer, we enable other projects to experiment with non-Dalvik approaches to constructing user applications.
To do this, the following steps are performed:

• Remove Applications, Middleware and Dalvik from the software build
• Add busybox and a few replacement servers
• Document the upper interface of the Android core pieces
• Experiment with several different application frameworks, including:
  • Qt/QML
  • Python/Kivy
  • HTML5 (probably both Mozilla and Webkit)
  • Game engines
  • X Windows

Why are we doing this?

• Application frameworks, like the Android middleware, are so complex that it is easy to 'add' to them, but radically different approaches (like an HTML5-centric application ecosystem) are quite difficult to try.
• By carefully documenting/supporting the "below Dalvik" layer, it makes the 'testing of deliverables' from the hardware adaptation more precise and accurate.
• By allowing experimentation in different UI frameworks, it is hoped that teams will be able to make appliances running in far smaller devices than would be required if the entire Android application ecosystem was supported.

Structure of a klaatu platform

Klaatu is a minimal linux system containing AOS kernel, HAL and low level daemons. With other AOS systems, several services depended on the Java engine (Dalvik). As the Klaatu system contains no Java engine, some additional services (daemons) are required to create a fully functional system.

• wifi/networking
• bluetooth
• power management
• messaging

Service daemon functionality is accessed via binder interfaces. One of several reference UI’s may be used to demonstrate the system:

• Headless (command line only)
• Qt
• Webkit
• Native OpenGLES interface

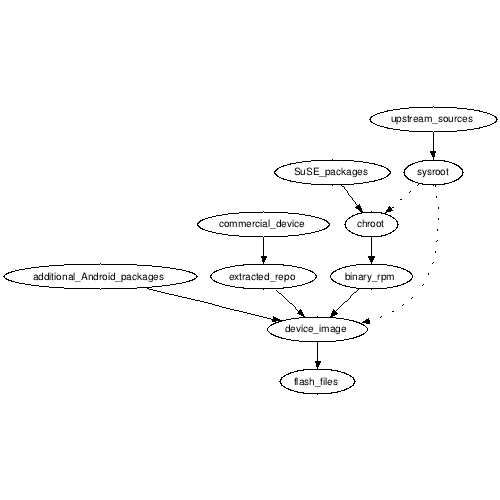

Basic Klaatu architecture
